Low-E Glass

Q: May I have some samples?

Y es, we can supply standard samples (size 100* 150mm or 300* 300mm) for free, but the courier freight is charged.

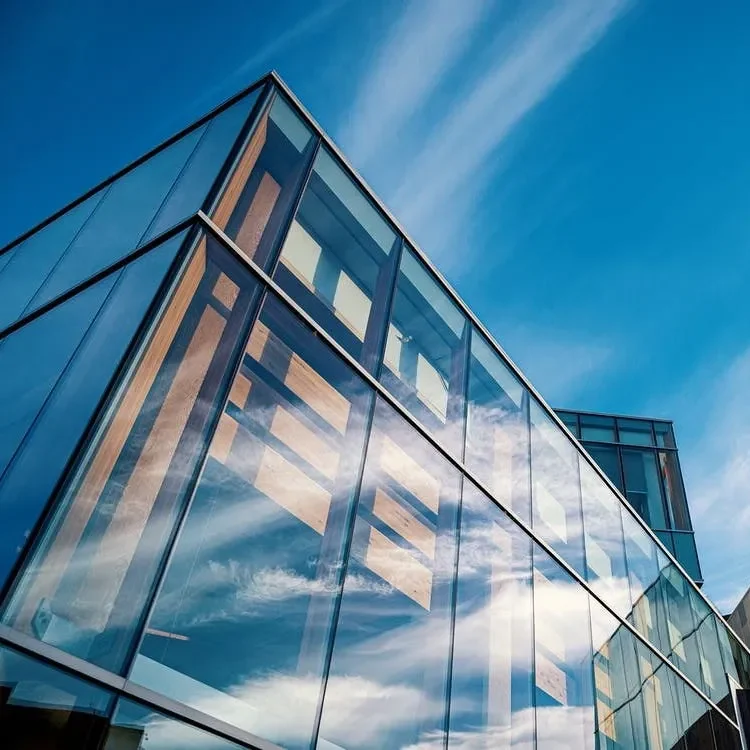

glass-facade-with-low-e-coated-insulated-glass

Low-emissivity glass, commonly referred to as Low-E glass, is coated with a thin film that is both silver and metal-oxide-based. This unique coating allows the glass to exhibit a variety of colors. Its primary function is to lower the U-value of the glass, selectively reduce the shading coefficient, and thereby significantly enhance the energy-saving capabilities of the glass.

Please leave us a message which type of glass, size and quantity you want so that we can send you a quotation as soon as possible. If you have images or files, email will be more suitable for you. You will receive a response shortly.

Product Descriptions:

Detailed features:

Low-E glass encompasses two primary types: high transmission Low-E glass and sun shading Low-E glass. High transmission Low-E glass features a shading coefficient of Sc≥0.5, which minimally reduces the transmission of sunlight. In contrast, sun-shading Low-E glass has a shading coefficient of Sc＜0.5, significantly reducing the transmission of sunlight.
Silver content in film structure categorizes Low-E glass into single, double, and triple-silver types. Double-silver Low-E glass was developed for applications requiring high light transmission and low shading coefficient. Typically, double-silver Low-E glass offers greater visible light transmissivity than single-silver, while triple-silver provides even higher transmissivity. Double-silver Low-E glass is versatile for most applications.

The main advantages of Low-E glass:

Low-E glass is used in architecture to maintain coolness in summer and warmth in winter, offering superior insulation. As a type of coated glass, it minimizes heat transfer due to temperature differences between indoors and outdoors.

USES:

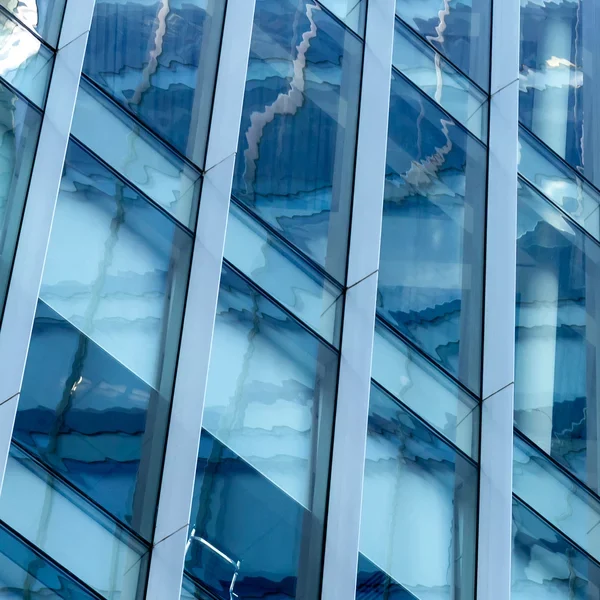

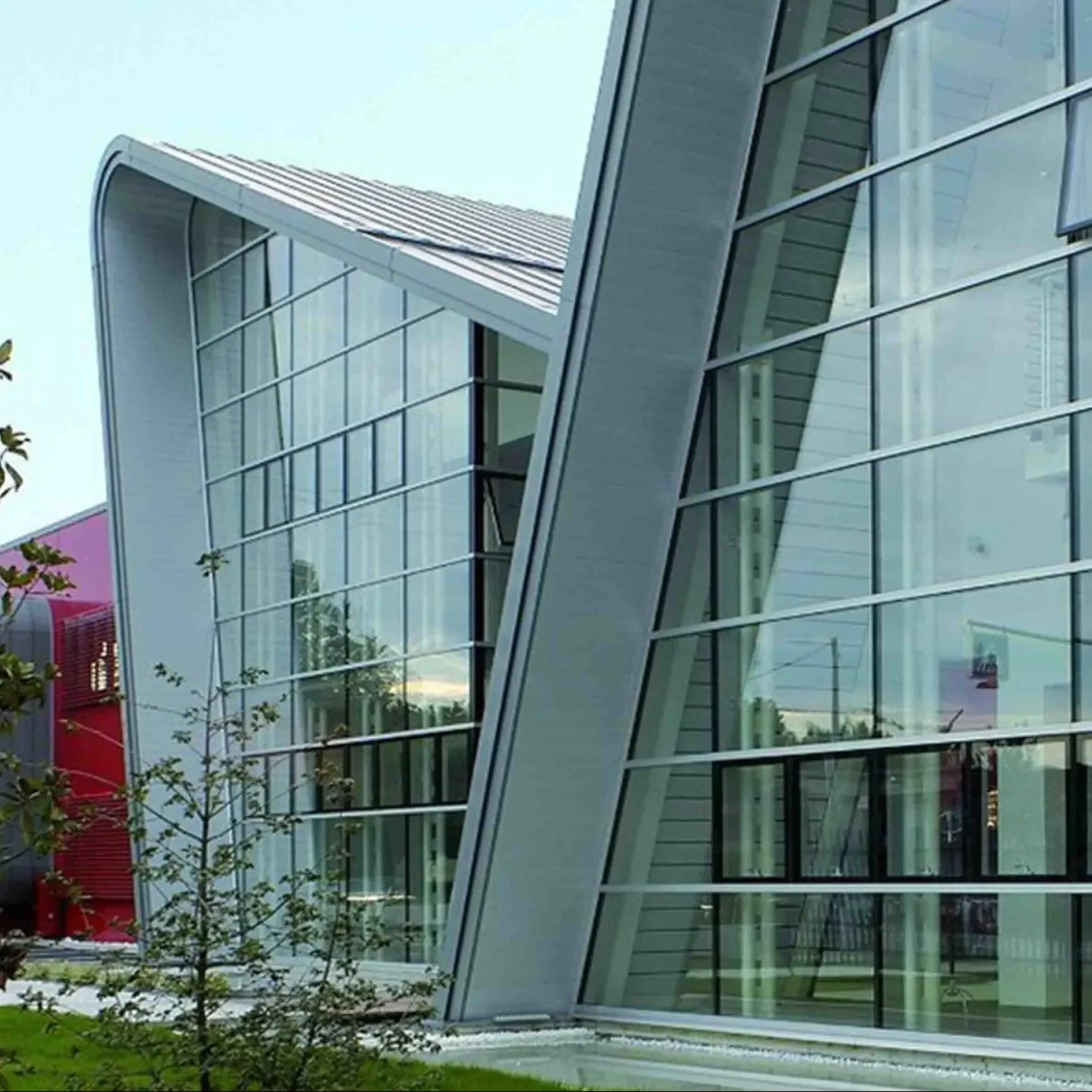

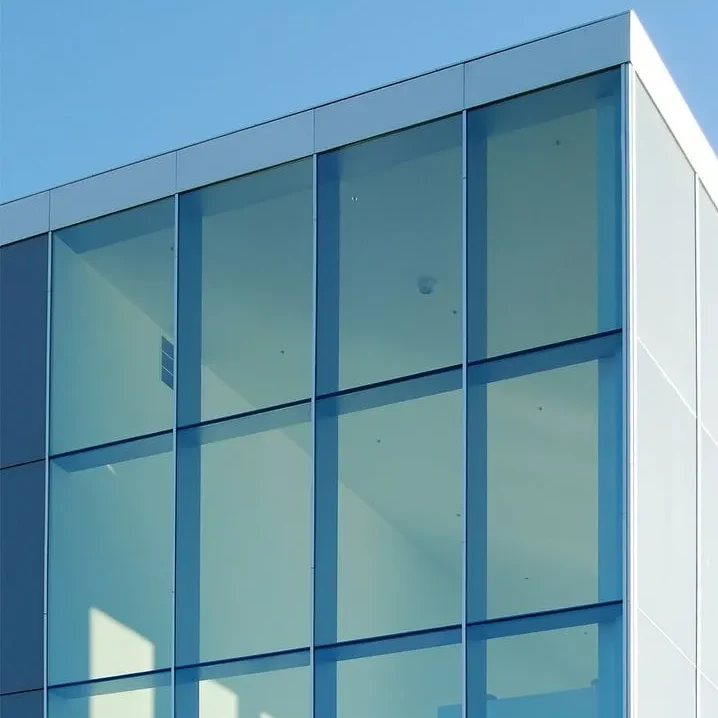

Utilized as a glass facade or curtain wall, it is extensively applied in regions of high, medium, and low latitudes, effectively preventing external heat from penetrating indoors during the summer months.

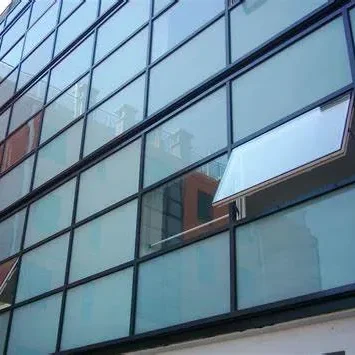

Used as windows and doors in buildings, it significantly diminishes the radiation from indoor heat transfer to the exterior, thereby achieving the desired energy-saving benefits.

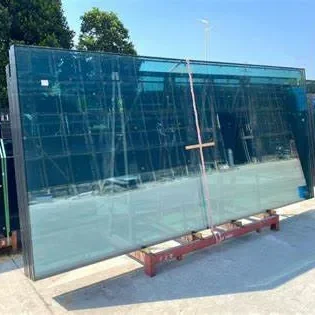

It can be processed into Low-E laminated glass and Low-E insulated glass, finding widespread application in modern architectural construction.

Specifications:

Available low E glass types: Online low E glass, Offline low E glass

Online Low e Color: Clear

Offline Low e Color: Clear low E coated glass, blue low E coated glass, gray low E coated glass, color can be customized

Thickness available: 4mm,5MM,6MM,8MM,10MM low E glass

Processing services: tempered, laminated, insulated, drilled holes, cut notches, beveled edges, safety corners, etc.

Size: customized sizes

Glass function: energy saving; UV protection, etc.

Delivery:3~10 days after deposit received. Urgent services are available.
